THE GS TRAM SITE

ZÜRICH

SCHWEIZ / SUISSE / SVIZZERA / SVIZRA - SWITZERLAND

flag.ch

DEC. 2006




SCHWEIZ / SUISSE / SVIZZERA / SVIZRA - SWITZERLAND

BASEL

BERN / BERNE

FRIBOURG / FREIBURG

GENÈVE / GENEVA

LAUSANNE

LUZERN / LUCERNE

NEUCHÂTEL

ZÜRICH


GS Web Site Home

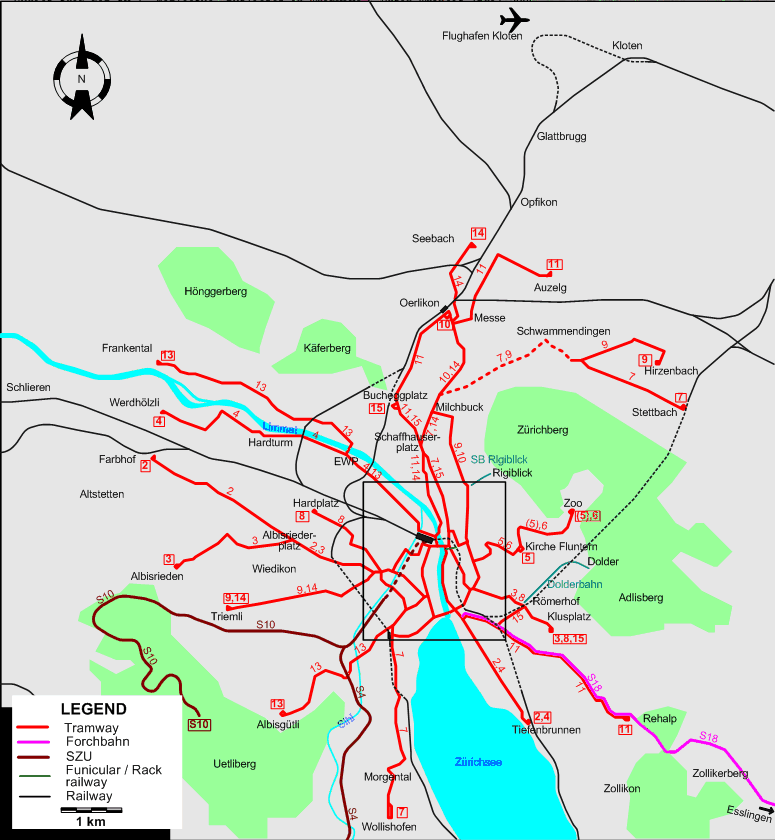

Zurich tram map

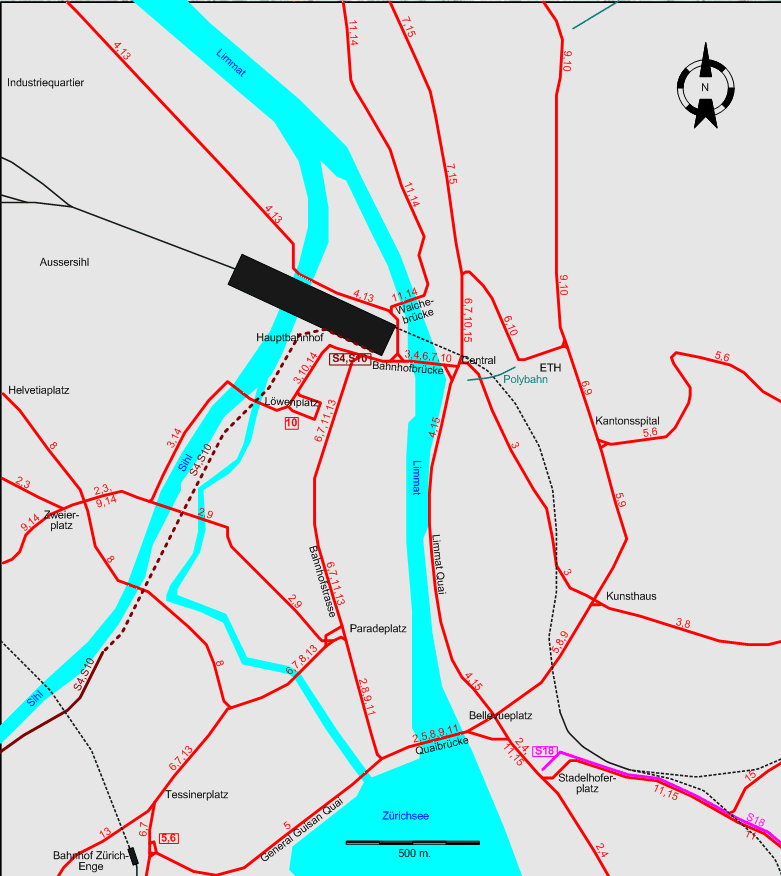

INSET: DOWNTOWN ZÜRICH

Zurich tram map

ABBREVIATIONS ON THE MAP

EWP Escher-Wyss-Platz

ROUTES

URBAN TRAM ROUTES

Operator: Verkehrsbetriebe Zürich (ZVV)

  2 Farbhof - Albisriederplatz - Zweierplatz - Paradeplatz - Bahnhofstrasse - Quaibrücke - Bellevue - Stadelhoferplatz - Bahnhof Tiefenbrunnen
  3 Albisrieden - Albisriederplatz - Zweierplatz - Hauptbahnhof - Central - Kunsthaus - Klusplatz
  4 Werdhölzli - Hardturm - Escher-Wyss-Platz - Hauptbahnhof - Central - Limmat Quai - Bellevue - Stadelhoferplatz - Bahnhof Tiefenbrunnen
  5 Bahnhof Enge - General Guisan Quai - Quaibrücke - Bellevue - Kunsthaus - Kantonsspital - Kirche Fluntern (- Zoo [On Sunday afternoons])
  6 Bahnhof Enge - Tessinerplatz - Paradeplatz - Bahnhofstrasse - Hauptbahnhof - Central - ETH - Kantonsspital - Kirche Fluntern - Zoo
  7 Bahnhof Stettbach - Schwamendingen - Milchbuck - Schaffhauserplatz - Central - Hauptbahnhof - Bahnhofstrasse - Paradeplatz - Tessinerplatz - Bahnhof Enge - Morgental - Wollishofen
  8 Hardplatz - Helvetiaplatz - Paradeplatz - Bahnhofstrasse - Quaibrücke - Bellevue - Kunsthaus - Klusplatz
  9 Triemli - Zweierplatz - Paradeplatz - Bahnhofstrasse - Quaibrücke - Bellevue - Kunsthaus - Kantonsspital - ETH - Milchbuck - Schwamendingen - Hirzenbach
10 Löwenplatz - Hauptbahnhof - Central - ETH - Milchbuck - Bahnhof Oerlikon
11 Auzelg - Messe/Hallenstadion - Bahnhof Oerlikon - Bucheggplatz - Schaffhauserplatz - Walchebrücke - Hauptbahnhof - Bahnhofstrasse - Paradeplatz - Bahnhofstrasse - Quaibrücke - Bellevue - Bahnhof Stadelhofen - Rehalp
13 Frankental - Escher-Wyss-Platz - Hauptbahnhof - Bahnhofstrasse - Paradeplatz - Tessinerplatz - Albisgütli
14 Triemli - Zweierplatz - Hauptbahnhof - Walchebrücke - Schaffhauserplatz - Milchbuck - Bahnhof Oerlikon - Seebach
15 Bucheggplatz - Schaffhauserplatz - Central - Limmat Quai - Bellevue - Bahnhof Stadelhofen - Klusplatz

SUBURBAN TRAM ROUTES

Operator: Sihltal-Zürich-Uetliberg-Bahn (SZU)

  S4 Hauptbahnhof - Sihlwald
S10 Hauptbahnhof - Uetliberg

Operator: Forchbahn (FB)

S18 Bahnhof Stadelhofen - Rehalp - Forch - Esslingen

FUNICULARS AND RACK RAILWAYS

Operator: Dolderbahn-Betriebs-AG

Dolderbahn Römerhof - Dolder

Operator: Verkehrsbetriebe Zürich (ZVV)

UBS Polybahn Central - ETH
Seilbahn Rigiblick Winterthurerstrasse - Rigiblick


CHARACTERISTICS OF THE SYSTEM

NETWORK LENGTH

  • Urban tramway: 71 km.
  • FB: 13 km. (+ 3 km. shared with the city tramway)
  • SZU: 27 km.
  • Dolderbahn: 1.3 km.
  • Polybahn: 176 m.
  • Seilbahn Rigiblick: 385 m.


HISTORY

  • Urban tramways: (horse-drawn): 1882 - 1896; (electric): 1894 - today.
  • Forchbahn: (electric): 27 Nov. 1912 - today.
  • Sihltakbahn: (steam) 1892 - 1924; (electric) 1924 - today.
  • Uetlibergbahn: (steam) 1875 - 1923; (electric) 1923 - today.
  • Dolderbahn: (funicular) 1895 - 1973; (rack-railway): 1973 - today.
  • Polybahn (funicular): (water-driven) 1889-1897; (electric) 1897 - today.
  • Seilbahn Rigiblick (funicular): 1901 - today.

GAUGE

  • Urban tramways: 1000 mm.
  • Forchbahn: 1000 mm.
  • Sihltalbahn / Uetlibergbahn: 1435 mm.
  • Dolderbahn: 1000 mm.
  • Polybahn: 1000 mm.
  • Seilbahn Rigiblick: 1000 mm.

TRAM PRESERVATION

The Zürich Tram Museum has a large number of preserved trams. One of these historic trams is run through city streets, April to October, as Museum Tram Line 21.


SOURCES

PRINT

  • Brosteaux, M., Ulmann M. & Wiseman, R. "The trams return to Schwamendingen", Modern Tramway & Light Rail Transit., July 1986 (49:583), p.227-241.
  • Buckley, R.J. Tramways and Light Railways of Switzerland and Austria. Milton Keynes (England): Light Rail Transit Association, 1st ed., 1984.
  • Buckley, R.J. Tramways and Light Railways of Switzerland and Austria. Milton Keynes (England): Light Rail Transit Association, 2nd ed., 2000.
  • Eisenbahnatlas Schweiz / Railatlas Suisse. Köln (Germany): Schweers + Wall, 2004.
  • Moglestue, A. "The Cobra rules, all above ground", Tramways & Urban Transit, May 2005 (68:809), p.180-184.
  • Moglestue, A. "Glattalbahn: Trams for a new city", Tramways & Urban Transit, Apr. 2009 (72:856), p.142-143.
  • Moglestue, A. "Tram Zürich West unlocks regeneration", Tramways & Urban Transit, Aug. 2012 (75:896), p.300-301.
  • Moglestue, A. "Zürich: Top city - thanks to light rail", Tramways & Urban Transit, April 2005 (68:808), p.130-134.
  • "Systems Fact file No.17: Zürich, Switzerland", Tramways & Urban Transit, Feb. 2009 (72 :854), p.59-61.
  • Taplin, M. "The Zürich way". In: Light Rail Review 3. London: Light Rail Transit Association, 2001 [p.5-11].
  • Trüb, W. Die Zürcher Strassenbahnen. Zürich: Eisenbahn-Amateur (Separatdruck), 1961/1978.
  • Wansbeek, C.J. "Zürich plays the tram card again", Light Rail & Modern Tramway, July 1997 (60:715), p.253-255.
