11 July 1964

The Barcelona tram network the day before the abandonment of the metre-gauge tramway 42 and of the shortening of line 70 to Barrio Besòs




ESPAÑA - SPAIN

BARCELONA

BILBAO

MADRID


GS Web Site Home


Barcelona PCC tram Barcelona Doublre decker tram Barcelona Blue tram
Barcelona Series 100 Metro Barcelona metro Brill

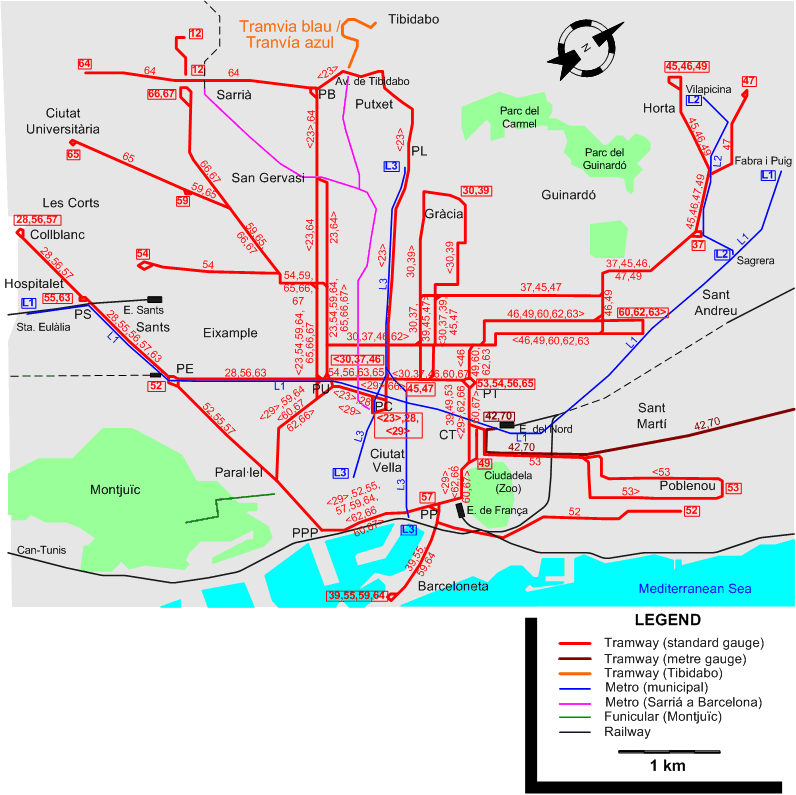

Barcelona 1964 tram map

INSET: CENTRAL BARCELONA

Barcelona 1964 central tram map




I created the above maps by overlaying OpenStreetMap (OSM) maps with my own data. Copyright on the OSM maps is © OpenStreetMap contributors, licensed under a CC-BY-SA (Creative Commons Attribution-ShareAlike 2.0 licence).

Please note that the OSM maps used as a template for these maps corresponds to the situation at the time the map was downloaded and may show features that did not exist at the time the GS Tram Site is supposed to show. In particular, it may show bridges and highways that were built later.

Note: Names of streets, squares etc. used below and on the maps are as they are today, in Catalan (and not in Spanish, as they were at the time of this map).


DISCONTINUATION DATES OF TRAM TRACKS BETWEEN 12 JULY 1964 AND 19 MAR. 1966 (affected route numbers in parantheses)

  • 1964 July 12: Barrio Besòs - Badalona (70)
  • 1965 Jan. 8: Pl. de la Universitat - Pl. de Catalunya - Lesseps - Pl. Kennedy - Pl. de la Bonanova (23)
  • 1965 May 19: E. del Nord – Barrio Besòs (70) [Last metre-gauge tram in Barcelona]
  • 1965 Dec. 20: C. del Consell de Cent (between C. de Llúria and Pg. Sant Joan) (46, 62)

ROUTES


Operator: Tranvías de Barcelona, SA. (ancestor of Transports Metropolitans de Barcelona (TMB))

URBAN TRAM ROUTES (STANDARD GAUGE)

12 Pl. Sarrià - Pl. de Borràs
23 Pl. de Catalunya – C. Aribau [back : C. Muntaner] – C. Muntaner – Pl. de la Bonanova – Pl. Kennedy - Pg. de Sant Gervasi – Lesseps – Pg. de Gràcia – Pl. de Catalunya [circular route, both directions]
28 Pl. de Catalunya – Gran Via - Pl. Espanya - Pl. de Sants - Carrer de Sants - Collblanc
29 Pla del Palau – Est. de França - Arc de Triomf – Tetuan – Gran Via – Pl. de la Universitat – Sant Antoni – Paraŀlel – Drassanes – Pla del Palau [circular route, both directions]
30 Gràcia (Pl. Rovira) – [C. Torrent de les Flors – C. Bailèn – C. del Bruc - Gran Via] [back : C. d’Aribau - C. del Consell de Cent - C. de Llúria – C. del Torrent de l'Olla] – Pl. de la Universitat
37 Pl. de la Universitat - [C. d’Aribau - C. del Consell de Cent – C. de Llúria] [back : C. del Bruc – Gran Via] – C. de Rosselló – C. del Dos de Maig – C. de la Indústria – Maragall
39 Gràcia (Pl. Rovira) – [C. Torrent de les Flors – C. Bailèn – C. del Bruc] [back : C. de Llúria – C. del Torrent de l'Olla] – Gran Via – Tetuan – Arc de Triomf – Est. de França - Pla del Palau – Barceloneta
45 Gran Via – C. de Llúria [back: C. del Bruc] – C. de Rosselló – C. del Dos de Maig – C. de la Indústria – Maragall – Horta
46 Pl. de la Universitat - [C. del Consell de Cent – C. Mallorca] [back : C. València - Tetuan – Gran Via] – C. del Dos de Maig – C. de la Indústria – Maragall - Horta
47 Gran Via – C. de Llúria [back: C. del Bruc] – C. de Rosselló – C. del Dos de Maig – C. de la Indústria – Maragall – Virrei Amat – Pg. de Verdum
49 Parc de la Ciutadella – Arc de Triomf - Tetuan – C. Mallorca [back : C. València] – C. del Dos de Maig – C. de la Indústria – Maragall – Horta
52 Pl. de Espanya – Av. del Paraŀlel – Paraŀlel – Drassanes - Pla del Palau – Poblenou
53 Tetuan – Arc de Triomf – E. del Nord – C. de Pujades [back: C. de Pallars] - Diagonal Mar
54 Pl. del Centre – C. de Berlin – C. de Corsega - C. Muntaner [back: C. Aribau] – Pl. de la Universitat - Gran Via – Tetuan
55 Plaça de Sants - Pl. de Espanya – Av. del Paraŀlel – Paraŀlel – Drassanes - Pla del Palau – Barceloneta
56 Collblanc – Carrer de Sants – Plaça de Sants - Pl. de Espanya – Gran Via – Tetuan
57 Collblanc – Carrer de Sants – Plaça de Sants - Pl. de Espanya – Av. del Paraŀlel – Paraŀlel – Drassanes - Pla del Palau
59 Les Corts – Av. Diagonal – Av. de Sarrià – C. de Corsega - C. Muntaner [back: C. Aribau] – Pl. de la Universitat – Sant Antoni – Paraŀlel – Drassanes – Pla del Palau - Barceloneta
60 C. de Rogent - C. València - Tetuan - Gran Via – Pl. de la Universitat – Sant Antoni – Paraŀlel – Drassanes – Pla del Palau - Est. de França - Arc de Triomf – Tetuan – C.Mallorca - C. de Rogent [loop route, counter-clockwise]
62 C. de Rogent - C. València - Tetuan - Arc de Triomf – Est. de França - Pla del Palau – Drassanes – Paraŀlel – Sant Antoni – Pl. de la Universitat – C. d’Aribau – C. del Consell de Cent - C. Mallorca - C. de Rogent [loop route, clockwise]
63 C. de Rogent - C. València [back: C. Mallorca] - Tetuan - Gran Via – Pl. de Espanya - Plaça de Sants
64 Barceloneta - Pla del Palau – Drassanes – Paraŀlel - Sant Antoni - Pl. de la Universitat - C. d’Aribau [back: C. de Muntaner] - C. de Muntaner - Pl. de la Bonanova - Pedralbes
65 Ciutat Universitària – Av. Diagonal – Av. de Sarrià – C. de Corsega - C. Muntaner [back: C. Aribau] – Gran Via – Tetuan
66 Sarrià – Pg. de Sant Joan Bosco – Av. de Sarrià – C. de Corsega - C. Muntaner – Pl. de la Universitat - Gran Via - Tetuan - Arc de Triomf - Est. de França - Pla de Palau - Drassanes - Paraŀlel – Sant Antoni - Pl. de la Universitat - C. d’Aribau - C. de Corsega - Av. de Sarrià – Pg. de Sant Joan Bosco – Sarrià [Loop route, clockwise]
67 Sarrià – Pg. de Sant Joan Bosco – Av. de Sarrià – C. de Corsega - C. Muntaner – Pl. de la Universitat - Sant Antoni – Paraŀlel – Drassanes – Pla del Palau - Est. de França - Arc de Triomf – Tetuan – Gran Via – Pl. de la Universitat - C. d’Aribau - C. de Corsega - Av. de Sarrià – Pg. de Sant Joan Bosco – Sarrià [Loop route, counter-clockwise]

URBAN TRAM ROUTES (METRE GAUGE)

42 E. del Nord – C. Pallars – C. de Pere IV – Sant Martí (Besòs)
70 E. del Nord – C. Pallars – C. de Pere IV – Sant Martí – Badalona (Casa Cros)

TOURIST TRAMWAY ("BLUE TRAMWAY")

Operator: Sociedad Anónima El Tibidabo

Tranvía azul Pl. Kennedy - Av. de Tibidabo - Funicular del Tibidabo

METRO

Operator: FC Metropolitano de Barcelona

I Sta. Eulàlia - Pl. - Pl. de Espanya - Pl. de Catalunya - Arc de Triomf - Glòries - Clot - La Sagrera - Fabra i Puig
II La Sagrera - Maragall - Vilapicina
III Lesseps - Diagonal - Pl. de Catalunya - Fernando / Correos

Operator: Ferrocarriles de Cataluña

   Pl. de Catalunya - Provença - Sant Gervasi - La Bonanova - Sarrià
   Pl. de Catalunya - Provença - Pàdua - Av. de Tibidabo

FUNICULARS

   Paraŀlel - Montjuïc
   Pl. Dr. Andreu - Tibidabo
   Peu del Funicular - Vallvidrera

CHARACTERISTICS OF THE SYSTEM

NETWORK LENGTH

  • Tramways: ? km.
  • Metro (Municipal): ? km.
  • Metro (Ferrocarriles de Cataluña): 6 km.
  • Blue tramway: 1.1 km.
  • Montjuïc funicular: 758 m.


HISTORY

  • Urban tramways (First cycle): (horse-drawn) 27 June 1872 - 1905?; (electric): 26 Jan. 1899 - 18 Mar. 1971.
  • Urban tramways (Second cycle): (electric) 3 Apr. 2004 - today.
  • Blue Tramway: (electric) 29 Oct. 1901 - today.
  • Urban metro lines: 30 Dec. 1924 - today.
  • FGC metro lines: (steam) 1863; (electric) 1906 - today.
  • Montjuïc funicular: 24 Oct. 1928 - today.
  • Tibidabo funicular: 29 Oct. 1901 - today.
  • Vallvidrera funicular: 1906 - today.

GAUGE

  • Urban tramways (First cycle): 1435/1000 mm.
  • Urban tramways (Second cycle): 1435 mm.
  • Blue Tramway: 1435 mm.
  • Metro (L1): 1674 mm.
  • Other metro lines: 1435 mm.
  • Montjuïc funicular: 1200 mm.
  • Tibidabo & Vallvidrera funiculars: 1000 mm.

SOURCES

PRINT

  • Gonzàlez Masip, A. Els tramvies de Barcelona – Història i explotació [Barcelona tramways – History and operations] (2 vols.) Barcelona: Rafael Dalmau, 1998.
  • "Systems Factfile: No.16 - Barcelona, Spain", Tramways & Urban Transit, Jan. 2009 (72:853), p.21-23.
  • Young, J. Barcelona transport maps (sheet maps). Exeter: Quail Map Co., 1985.
  • Wansbeek, C.J. "Barcelona: Teething troubles ironed out", Tramways & Ubran Transit, July 2004 (67:799), p.253-257.
  • Wansbeek, C.J. "Barcelona: Brand new impetus for the metro", Tramways & Ubran Transit, Sept. 2004 (67:801), p.331-333.
  • Zurita, F. "The tramways of Barcelona", Modern Tramway, Apr. 1963 (26:304), p.122-131.
  • Zurita, F. "The urban railways of Barcelona", Modern Tramway, Aug. 1963 (26:308), p.269-290.
