BARCELONA

ESPAÑA - SPAIN

flag.esp

21 July 1970

The Barcelona tram network on the last day of operation of line 54, and just after the prolongation of one branch of Metro line III to Paraŀlel (on 17 June 1970) and of the completion of metro line V between Diagonal and La Sagrera (on 26 June 1970).


Barcelona PCC tram Barcelona Doublre decker tram Barcelona Blue tram
Barcelona Series 100 Metro Barcelona metro Brill

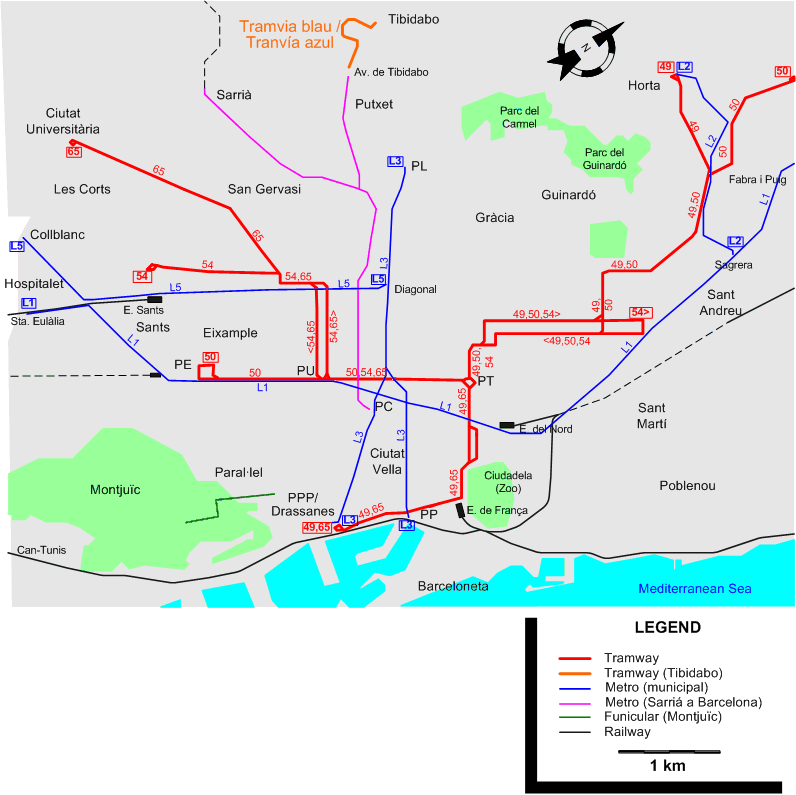

Barcelona 1970 tram map

INSET: CENTRAL BARCELONA

Barcelona 1970 central tram map

Note: Names of streets, squares etc. used below and on the maps are as they are today, in Catalan (and not in Spanish, as they were at the time of this map.

DISCONTINUATION DATES OF TRAM TRACKS BETWEEN 21 JULY 1970 AND 17 MARCH 1971 (affected route numbers in parantheses)

  • 1970 July 21: C. de Berlin; C. Mallorca & C. València (NE of C. del Dos de Maig) and C. de Rogent (54)
  • 1970 Aug. 4: Ciutat Universitària – Av. Diagonal – Av. de Sarrià (65)
  • 1970 Aug. 17: C. de Vilamarí – Gran Via – Pl. de la Universitat (50)

ROUTES

Operator: Transportes de Barcelona (ancestor of Transports Metropolitans de Barcelona (TMB))

URBAN TRAM ROUTES

49 Drassanes – Est. de França – Arc de Triomf – Tetuan – C. Mallorca [back : C. València] – Maragall – Horta
50 C. de Vilamarí – Gran Via – Tetuan – C. Mallorca [back : C. València] – Maragall – Virrei Amat – Via Júlia
54 Pl. del Centre – C. de Berlin – C. de Muntaner [back: C. d'Aribau] – Universitat - Gran Via – Pl. Tetuan – C. Mallorca [back: C. València] – C. de Rogent
65 Ciutat Universitària – Av. Diagonal – Av. de Sarrià – C. de Muntaner [back: C. d'Aribau] – Universitat – Gran Via – Tetuan – Arc de Triomf – Est. de França – Drassanes

TOURIST TRAMWAY ("BLUE TRAMWAY")

Operator: Sociedad Anónima El Tibidabo

Tranvía azul Pl. Kennedy - Av. de Tibidabo - Funicular del Tibidabo

METRO

Operator: FC Metropolitano de Barcelona

I Sta. Eulàlia - Pl. de Sants - Pl. de Espanya - Pl. de Catalunya - Arc de Triomf - Glòries - Clot - La Sagrera - Fabra i Puig - Torras i Bages
III Lesseps - Diagonal - Pl. de Catalunya - [Drassanes - Paraŀlel] / Correos
V Collblanc - Pl. de Sants - Sants Estació - Provença - Diagonal - Sagrada Família - La Sagrera - Maragall - Horta

Operator: Ferrocarriles de Cataluña

   Pl. de Catalunya - Provença - Sant Gervasi - La Bonanova - Sarrià
   Pl. de Catalunya - Provença - Pàdua - Av. de Tibidabo

FUNICULARS

   Paraŀlel - Montjuïc
   Pl. Dr. Andreu - Tibidabo
   Peu del Funicular - Vallvidrera

CHARACTERISTICS OF THE SYSTEM

NETWORK LENGTH

  • Tramways: ? km.
  • Metro (Municipal): ? km.
  • Metro (Ferrocarriles de Cataluña): 6 km.
  • Blue tramway: 1.1 km.
  • Montjuïc funicular: 758 m.
  • Tibidabo funicular: 1130 m.
  • Vallvidrera funicular: 736 m.
