THE GS TRAM SITE

LISBOA – LISBON

PORTUGAL

flag.prt

June 1986

The system after the removal of tram tracks from Rua de São Bento (routes 22/23) and the complete replacement of circular routes 10/11 in Graça by route 28.




PORTUGAL

LISBOA - LISBON


MTS - SUL DO TEJO / SOUTH OF THE TAGUS


GS Web Site Home


Lisbon tram Lisbon tram Lisbon tram
Lisbon funicular Lisbon metro

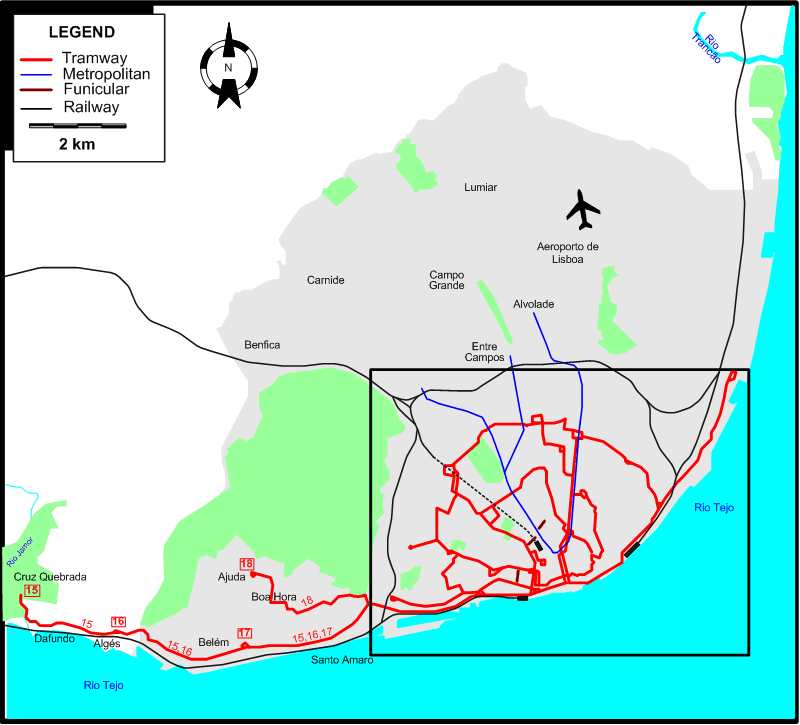

Lisbon 1986 tram map

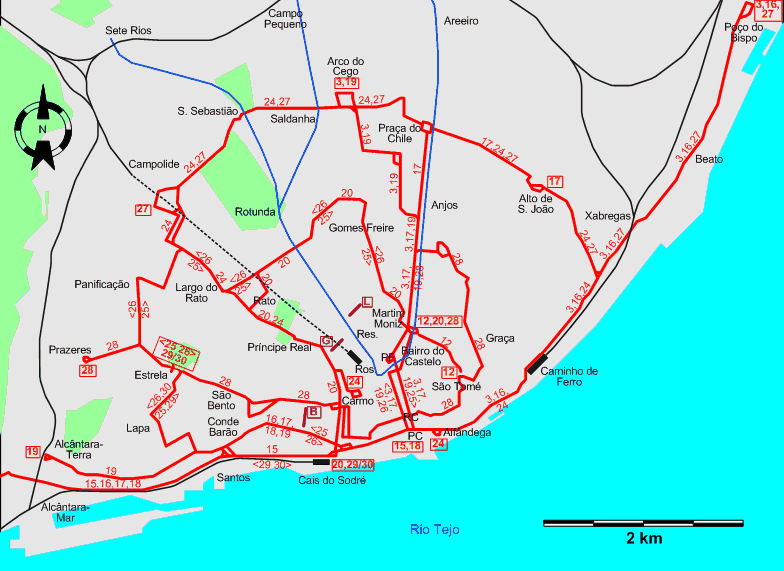

INSET: CENTRAL LISBON

Lisbon downtown tram map 1986



I created the above maps by overlaying OpenStreetMap (OSM) maps with my own data. Copyright on the OSM maps is © OpenStreetMap contributors, licensed under a CC-BY-SA (Creative Commons Attribution-ShareAlike 2.0 licence).

Please note that the OSM maps used as a template for these maps corresponds to the situation at the time the map was downloaded and may show features that did not exist at the time the GS Tram Site is supposed to show. In particular, it may show bridges and highways that were built later.

ABBREVIATIONS

Ca Carmo PF Praça da Figueira
CS Corpo Santo PLC Praça Luis de Camões
PC Praça do Comércio RC Rua da Conceição

ROUTES


Operator: Companhia Carris de Ferro de Lisboa (Carris)

URBAN TRAM ROUTES

  3 Poço do Bispo – Beato – Xabregas – Santa Apolónia – Alfândega – Praça da Figueira – Martim Moniz – Intendente - Anjos – Largo Dona Estefânia - Arco do Cego
12 Martim Moniz – São Tomé
15 Praça do Comércio – Corpo Santo - Cais do Sodré – Santos – Alcântara-Mar – Santo Amaro – Belém – Algés – Dafundo – Cruz Quebrada
16 Poço do Bispo – Beato – Xabregas – Santa Apolónia – Alfândega – Praça do Comércio – Corpo Santo - Conde Barão – Santos – Alcântara-Mar – Santo Amaro – Belém – Algés
17 Alto de S. João – Praça do Chile – Anjos – Intendente - Martim Moniz – Praça da Figueira – Praça do Comércio – Corpo Santo - Conde Barão – Santos – Alcântara-Mar – Santo Amaro – Belém
18 Praça do Comércio – Corpo Santo - Conde Barão – Santos – Alcântara-Mar – Boa Hora – Ajuda
19 Arco do Cego – Largo Dona Estefânia - Anjos – Intendente - Martim Moniz – Praça da Figueira – Praça do Comércio – Corpo Santo - Conde Barão – Santos – Alcântara-Terra
20 Martim Moniz – Gomes Freire – R. Nova de S. Mamede – Príncipe Real – Elevador da Glória - Praça Luis de Camões - Cais do Sodré
24 Carmo – Elevador da Glória - Príncipe Real – Rato – Campolide – Santo Sebastião – Saldanha – Arco do Cego - Praça do Chile – Alto de S. João – Santa Apolónia – Alfândega
25 Estrela – Panificação – Rato – Gomes Freire – Martim Moniz – Praça da Figueira – Praça do Comércio – Corpo Santo - Conde Barão – Santos – Lapa – Estrela [circular route, clockwise]
26 Estrela – Lapa – Santos – Conde Barão – Corpo Santo - Praça do Comércio – Praça da Figueira – Martim Moniz – Gomes Freire – Rato – Panificação – Estrela [circular route, counter-clockwise]
27 Poço do Bispo – Beato – Xabregas – Alto de S. João – Praça do Chile – Arco do Cego - Saldanha – Santo Sebastião – Campolide
28 Martim Moniz – Intendente - Graça – São Tomé – Rua da Conceição – Praça Luis de Camões - São Bento – Estrela – Prazeres
29 Cais do Sodré – Santos – Lapa – Estrela [one way]
30 Estrela – Lapa – Santos – Cais do Sodré [one way]

FUNICULARS

  B Ascensor da Bica: Largo do Calhariz – Rua de São Paulo
  G Ascensor da Glória: S. Pedro de Alcântara – Restauradores
  L Ascensor do Lavra: Rua Câmara Pestana – Largo da Anunciada

Operator: Metropolitano de Lisboa

UNDERGOUND (METROPOLITAN) ROUTES

Metro Alvalade – Alameda – Arroios – Anjos – Intendente - Martim Moniz - Rossio – Rotunda – [S. Sebastião - Sete Rios] / [Saldanha - Entre Campos]


CHARACTERISTICS OF THE SYSTEM

NETWORK LENGTH

  • Tramways: ? km.
  • Metropolitan : ? km.
  • Funiculars:
    • Bica – 283 m.
    • Glória – 265 m.
    • Lavra – 180 m.


HISTORY

  • Urban tramways: (mule-drawn) 17 Nov. 1873 - 10 Aug. 1902; (steam): 1889 - ? ; (electric): 31 Aug. 1901 - today.
  • Metropolitan lines: 29 Dec. 1959 - today.
  • Funiculars: (hydraulic) 19 Apr. 1884 - 1914 ; (steam) 28 June 1892 - 1914; (electric) 1914 - today.

GAUGE

  • Urban tramways : 900 mm.
  • Metropolitan: 1435 mm.
  • Funiculars: 900 mm.

SOURCES

PRINT

  • Cross, B. "Lisboa: New transport policy, and how to make the most of a tour of the Portuguese capital city", Light Rail & Modern Tramway, Dec. 1995 (58: 696), p.412-414
  • Cross, B. "Lisboa - How a tried design kept replacement costs down", Light Rail & Modern Tramway, Jan. 1996 (59: 697), p.13-14
  • Dias, M.T. História do Eléctrico da Carris - The history of the Lisbon trams. Lisboa: Quimera, 2nd ed., 2005.
  • McLoughlin, I. "Lisbon tramways - June 1986" [Map], Modern Tramway & Light Rail Transit, Oct. 1987 (50: 598), p.354.
  • King, B.R. & Price, J.H. The tramways of Portugal - A visitor's guide. Broxbourne [England]: Light Rail Transit Association, 3rd ed., 1983.
  • Price, J.H. "The tramways of Portugal: 1964-1968", Modern Tramway, Aug. 1968 (31: 368), p.271-278.
  • Pulling, N. "Light rail diversity in Lisbon", Tramways & Urban Transit, Oct. 2011 (74: 886), p.386-390.
  • Wansbeek, C.J. "Lisboa: Old trams out, new lines in", Tramways & Urban Transit, May 2001 (64: 761), p.172-175.

WIKIS

WEB SITES

Also, thanks to Manuel Tão in Lisbon for information obtained through personal communication.
