THE GS TRAM SITE

STOCKHOLM

SVERIGE - SWEDEN

flag.swe

2002

The revived system, after the reopening of Line 7 (June 1991) and the opening of new Tvärbanan (Cross-Connector) line 22 in 2000.




SVERIGE - SWEDEN

GÖTEBORG - GOTHENBURG

MALMÖ

NORRKÖPING

STOCKHOLM


GS Web Site Home

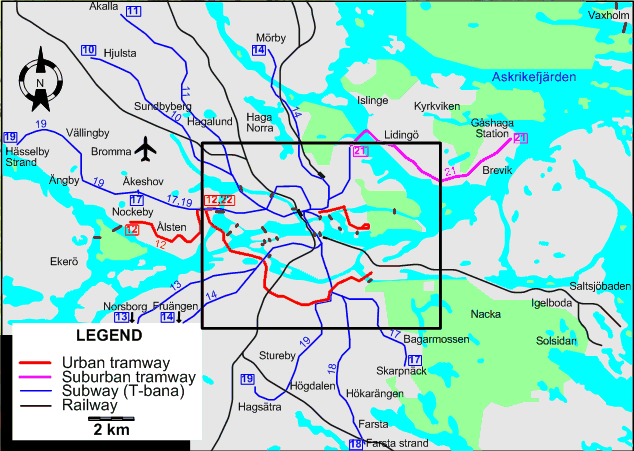

Stockholm tram map 2002

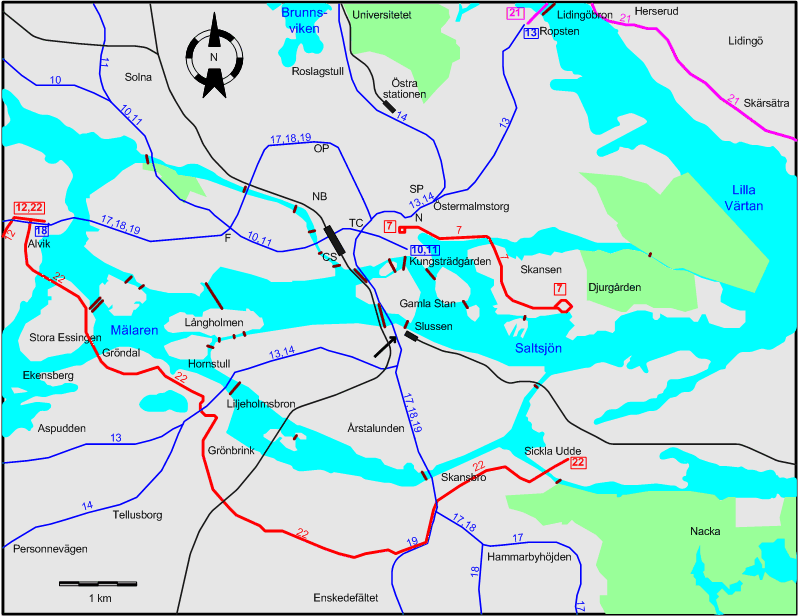

INSET: DOWNTOWN STOCKHOLM

Stockholm downtown tram map 2002


MAJOR HUBS

CS Centralstationen [Central Station] OP Odenplan
F Fridhemsplan SP Stureplan
N Norrmalmstorg TC T-Centralen
NB Norra Bantorget

ROUTES

Coordinator of urban transportation in Stockholm: AB Storstockholms Lokaltrafik

With the exception of the Djurgårdenlinjen, all the tram lines in Stockholm are operated by Veolia Transport.

The Djurgårdenlinjen (Line 7) is a heritage tourist tramway operated entirely on a volunteer basis by the Svenska Spårvägssällskapet. It is, nevertheless, a functional part of the city's transportation system.

URBAN TRAM ROUTES

  7 Djurgårdenlinjen Norrmalmstorg - Nybroplan - Djurgårdsbron - Skansen - Djurgården/Bellmansro
12 Nockebybanan Alvik - Ålsten - Nockeby
22 Tvärbanan Alvik - Gröndal - Liljeholmen - Gullmarsplan - Sickla udde

LIGHT RAIL ROUTES

21 Lidingöbanan Ropsten - Lidingöbron - Herserud - Skärsätra - Brevik - Gåshaga brygga
25 Saltsjöbanan Slussen - Sickla - Nacka - Igelboda - Saltsjöbaden
26 Saltsjöbanan Igelboda - Solsidan

T-BANA (UNDERGROUND) ROUTES

10 Kungsträdgården - T-Centralen - Fridhemsplan - Sundbyberg - Rinkeby - Hjulsta
11 Kungsträdgården - T-Centralen - Fridhemsplan - Solna - Akalla
13 Ropsten - Östermalmstorg - T-Centralen - Slussen - Liljeholmen - Sätra - Fittja - Norsborg
14 Mörby Centrum - Universitetet - Östermalmstorg - T-Centralen - Slussen - Liljeholmen - Fruängen
17 Åkeshov - Alvik - Fridhemsplan - Odenplan - T-Centralen - Slussen - Gullmarsplan - Bagarmossen - Skarpnäck
18 Alvik - Fridhemsplan - Odenplan - T-Centralen - Slussen - Gullmarsplan - Hökarängen - Farsta strand
19 Hässelby Strand - Vällingby - Åkeshov - Alvik - Fridhemsplan - Odenplan - T-Centralen - Slussen - Gullmarsplan - Högdalen - Hagsätra


CHARACTERISTICS OF THE SYSTEM

NETWORK LENGTH

  • Urban tramways: 18 km.
  • Lidingöbanan: 9 km.
  • T-Bana (Underground): 108 km.


HISTORY

  • Urban tramways: (horse-drawn) 1877 - ?; (electric): 5 Sept. 1901 - today.
  • Lidingöbanan (electric): 1907 - today.
  • Saltsjöbanan: (steam) 1 July 1893 - 1913; (electric) 1913 - today.
  • T-Bana (Underground): 1 Oct. 1950 - today.
  • Roslagsbanan: 1885 - today. (Electrified (in part): 1892, (completely): 1895).

GAUGE

  • Urban tramways: 1435 mm.
  • Lidingöbanan: 1435 mm.
  • Saltsjöbanan: 1435 mm.
  • T-Bana (Underground): 1435 mm.
  • Roslagsbanan: 891 mm.

SOURCES

PRINT

  • Groves, J.P. "Tolvan - 12", Modern Tramway & Light Railway Review, Feb. 1968 (31:362), p.51-53.
  • Karta över Spårvägsbolagets Spårvägs- och Busslinjer I Stockholm (1936) (Stockholm tram and bus timetable and route map)
  • Price, J.H. "Heritage Column" [The Djurgården tramway], Modern Tramway & Light Railway Transit, July. 1991 (54:643), p.226-228.
  • Pulling, N. "Systems Factfile: No.24 - Stockholm, Sweden", Tramways & Urban Transit, Sept. 2009 (72: 861), p.347-350.
  • Stockholms Kartan 1966 (Map of Stockholm - 1966)

WIKIS

WEB SITES
