28 Oct. 2013

UP-TO-DATE

The system after the opening of tram line 22 between Alvik and Solna Centrum on 28 Oct. 2013.




SVERIGE - SWEDEN

GÖTEBORG - GOTHENBURG

MALMÖ

NORRKÖPING

STOCKHOLM


GS Web Site Home


Stockholm tram Stockholm tram Stockholm tram
Stockholm tram Stockholm suburban tram Stockholm saltsjobanan
Stockholm tram Stockholm tram Stockholm suburban train

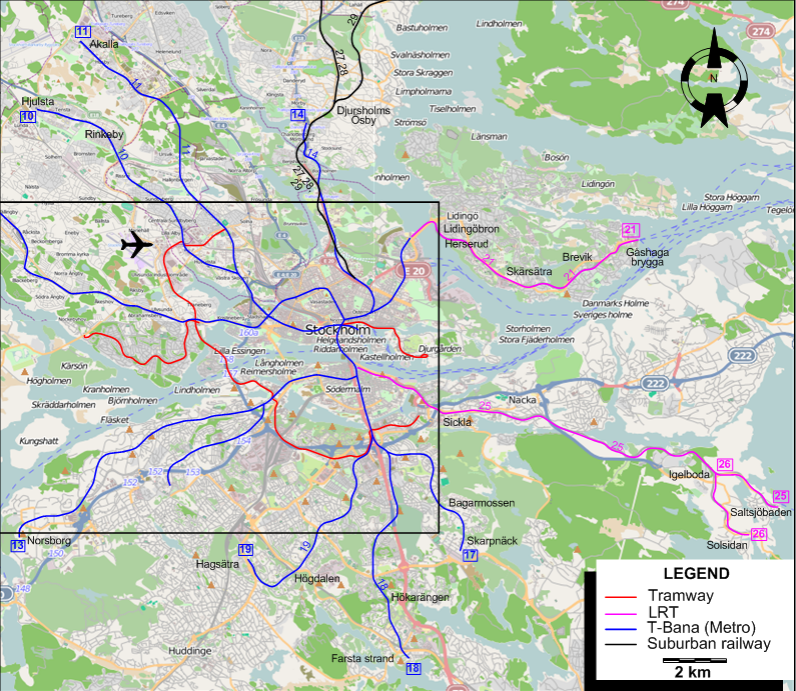

Stockholm tram map 2013

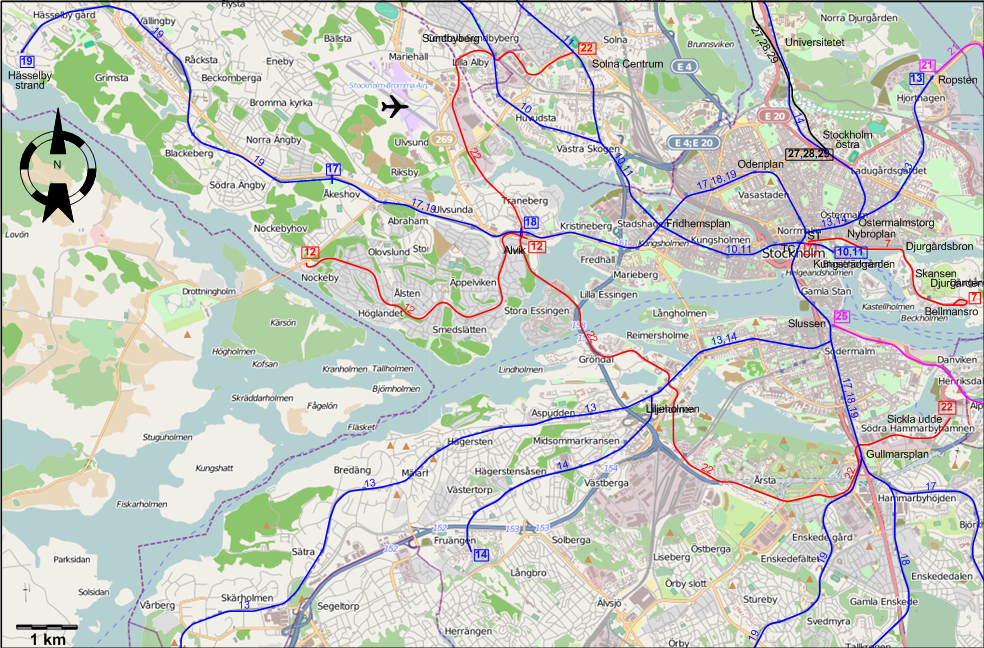

INSET: DOWNTOWN STOCKHOLM

Stockholm downtown tram map 2013


ABBREVIATIONS

CS Centralstationen [Central Station] TC T-Centralen
ST Sergels torg


I created the above maps by overlaying OpenStreetMap (OSM) maps with my own data. Copyright on the OSM maps is © OpenStreetMap contributors, licensed under a CC-BY-SA (Creative Commons Attribution-ShareAlike 2.0 licence).

Please note that the OSM maps used as a template for these maps corresponds to the situation at the time the map was downloaded and may show features that did not exist at the time the GS Tram Site is supposed to show. In particular, it may show bridges and highways that were built later.

ROUTES

Coordinator of urban transportation in Stockholm: AB Storstockholms Lokaltrafik

Lidingöbanan, Nockebybanan, Tvärbanan and Saltsjöbanan are operated by Veolia Transport.

The T-bana system is operated by Hong Kong based MTR Corporation.

Roslagsbanan is operated by Roslagståg

Since 21 Aug. 2013, the Djurgårdslinjen (Line 7) is a regular tram line operated by AB Stockholms Spårvägar, while heritage trams are still operated over most of the line, entirely on a volunteer basis, by the Svenska Spårvägssällskapet.

URBAN TRAM ROUTES

  7 Djurgårdenlinjen Sergels torg - Nybroplan - Djurgårdsbron - Skansen - Djurgården/Bellmansro
12 Nockebybanan Alvik - Ålsten - Nockeby
22 Tvärbanan Two sections: Solna Centrum - Sundbyberg - Alvik; Alvik - Gröndal - Liljeholmen - Gullmarsplan - Sickla udde

LIGHT RAIL ROUTES

21 Lidingöbanan Ropsten - Lidingöbron - Herserud - Skärsätra - Brevik - Gåshaga brygga
25 Saltsjöbanan Slussen - Sickla - Nacka - Igelboda - Saltsjöbaden
26 Saltsjöbanan Igelboda - Solsidan

T-BANA (UNDERGROUND) ROUTES

10 Kungsträdgården - T-Centralen - Fridhemsplan - Västra Skogen - Sundbyberg - Rinkeby - Hjulsta
11 Kungsträdgården - T-Centralen - Fridhemsplan - Västra Skogen - Solna - Akalla
13 Ropsten - Östermalmstorg - T-Centralen - Slussen - Liljeholmen - Sätra - Fittja - Norsborg
14 Mörby Centrum - Universitetet - Stockholm östra - Östermalmstorg - T-Centralen - Slussen - Liljeholmen - Fruängen
17 Åkeshov - Alvik - Fridhemsplan - Odenplan - T-Centralen - Slussen - Bagarmossen - Skarpnäck
18 Alvik - Fridhemsplan - Odenplan - T-Centralen - Slussen - Hökarängen - Farsta strand
19 Hässelby strand - Vällingby - Åkeshov - Alvik - Fridhemsplan - Odenplan - T-Centralen - Slussen - Högdalen - Hagsätra

SUBURBAN RAIL ROUTES

Roslagsbanan

27 Stockholm östra - Universitetet - Mörby - Djursholms Ösby - Roslags Näsby - Kårsta
28 Stockholm östra - Universitetet - Mörby - Djursholms Ösby - Roslags Näsby - Österskär
29 Stockholm östra - Universitetet - Mörby - Djursholms Ösby - Näsbypark

CHARACTERISTICS OF THE SYSTEM

NETWORK LENGTH

  • Urban tramways: 25 km.
  • Lidingöbanan: 9 km.
  • Saltsjöbanan: 18.5 km.
  • T-Bana (Underground): 108 km.
  • Roslagsbanan: 65 km.


HISTORY

  • Urban tramways: (horse-drawn) 1877 - ?; (electric): 5 Sept. 1901 - today.
  • Lidingöbanan (electric): 1907 - today.
  • Saltsjöbanan: (steam) 1 July 1893 - 1913; (electric) 1913 - today.
  • T-Bana (Underground): 1 Oct. 1950 - today.
  • Roslagsbanan: 1885 - today. (Electrified (in part): 1892, (completely): 1895).

GAUGE

  • Urban tramways: 1435 mm.
  • Lidingöbanan: 1435 mm.
  • Saltsjöbanan: 1435 mm.
  • T-Bana (Underground): 1435 mm.
  • Roslagsbanan: 891 mm.

SOURCES

PRINT

  • Groves, J.P. "Tolvan - 12", Modern Tramway & Light Railway Review, Feb. 1968 (31:362), p.51-53.
  • Karta över Spårvägsbolagets Spårvägs- och Busslinjer I Stockholm (1936) (Stockholm tram and bus timetable and route map)
  • Price, J.H. "Heritage Column" [The Djurgården tramway], Modern Tramway & Light Railway Transit, July. 1991 (54:643), p.226-228.
  • Pulling, N. "Systems Factfile: No.24 - Stockholm, Sweden", Tramways & Urban Transit, Sept. 2009 (72: 861), p.347-350.
  • Stockholms Kartan 1966 (Map of Stockholm - 1966)
