Zürich 2022

The system after the prolongation of tram line no.2 to Schlieren on 2 Sept. 2019 and the inauguration of LRT line 20 ( Limmattalbahn) on 10 Dec. 2022.

Zurich tram map

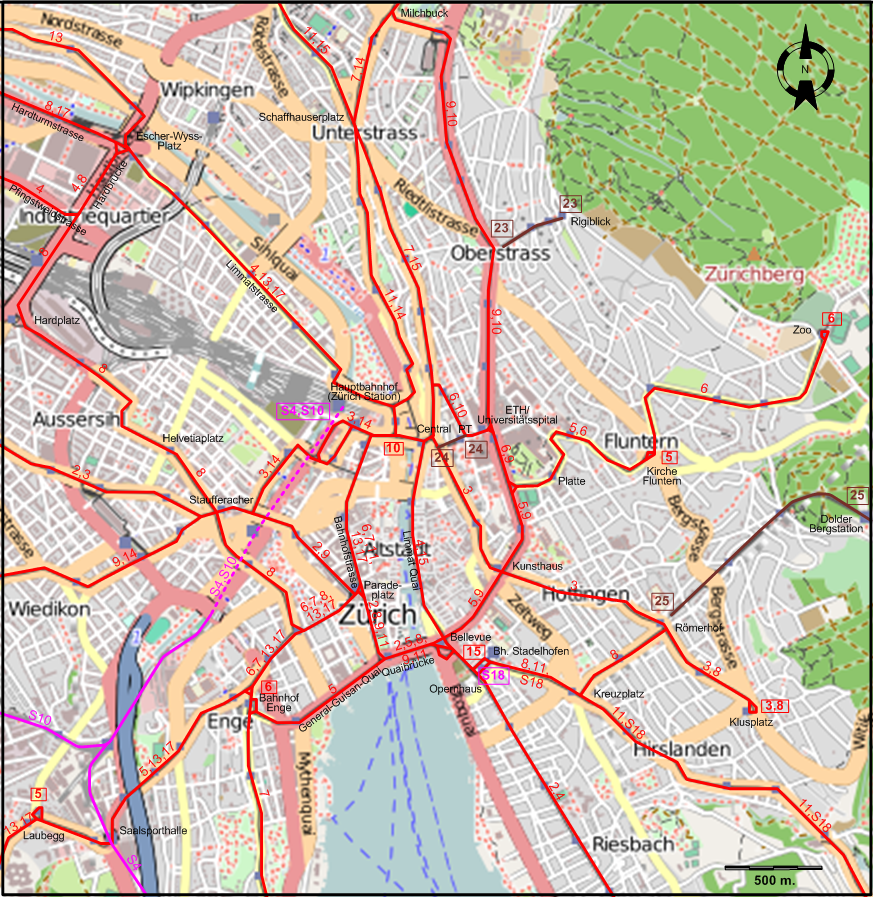

INSET: CENTRAL ZÜRICH

Central Zurich tram map

INSET: LIMMATTAL

Zurich Limmattal LRT tram map

ABBREVIATION ON THE MAP

Polyterrasse

I created the above maps by overlaying OpenStreetMap (OSM) maps with my own data. Copyright on the OSM maps is © OpenStreetMap contributors, licensed under a CC-BY-SA (Creative Commons Attribution-ShareAlike 2.0 licence).

Please note that the OSM maps used as templates for these maps correspond to the situation at the time the maps were downloaded and may show features that did not exist at the time the GS Tram Site is supposed to show. In particular, they may show bridges and highways that were built later.

ROUTES

URBAN TRAM ROUTES

Operator: Verkehrsbetriebe Zürich (VBZ)

2	Schlieren - Farbhof - Albisriederplatz - Staufferacher - Paradeplatz - Bahnhofstrasse - Quaibrücke - Bellevue - Opernhaus (Opera) - Bahnhof Tiefenbrunnen
3	Albisrieden - Albisriederplatz - Staufferacher - Hauptbahnhof (Zürich Station) - Central - Kunsthaus (Art Museum) - Römerhof - Klusplatz
4	Bh. Zürich Altstetten - Pfingstweidstrasse - Hardbrücke - Escher-Wyss-Platz - Limmatstrasse - Hauptbahnhof (Zürich Station) - Central - Limmat Quai - Bellevue - Opernhaus (Opera) - Bahnhof Tiefenbrunnen
5	Laubegg - Saalsporthalle - Bahnhof Enge - General-Guisan-Quai - Quaibrücke - Bellevue - Kunsthaus (Art Museum) - Platte - Kirche Fluntern
6	Bahnhof Enge - Paradeplatz - Bahnhofstrasse - Hauptbahnhof (Zürich Station) - Central - ETH/Universitätsspital (ETH/University Hospital) - Platte - Kirche Fluntern - Zoo
7	Bahnhof Stettbach - Schwamendingen - Milchbuck - Schaffhauserplatz - Central - Hauptbahnhof (Zürich Station) - Bahnhofstrasse - Paradeplatz - Bahnhof Enge - Morgental - Wollishofen
8	Hardturm - Hardturmstrasse - Escher-Wyss-Platz - Hardbrücke - Hardplatz - Helvetiaplatz - Staufferacher - Paradeplatz - Bahnhofstrasse - Quaibrücke - Bellevue - Bahnhof Stadelhofen - Kreuzplatz - Römerhof - Klusplatz
9	Triemli - Staufferacher - Paradeplatz - Bahnhofstrasse - Quaibrücke - Bellevue - Kunsthaus (Art Museum) - ETH/Universitätsspital (ETH/University Hospital) - Milchbuck - Schwamendingen - Hirzenbach
10	Hauptbahnhof (Zürich Station) - Central - ETH/Universitätsspital (ETH/University Hospital) - Milchbuck - Messe - Bh. Oerlikon Ost - Leutschenbach - Glattpark - Bh. Glattbrugg - Flughafen Kloten (Zürich Airport)
11	Auzelg - Glattpark - Leutschenbach - Messe - Bahnhof Oerlikon - Bucheggplatz - Schaffhauserplatz - Hauptbahnhof (Zürich Station) - Bahnhofstrasse - Paradeplatz - Bahnhofstrasse - Quaibrücke - Bellevue - Bahnhof Stadelhofen - Kreuzplatz - Hirslanden - Rehalp
12	Bahnhof Stettbach - Giessen - Bahnhof Wallisellen - Auzelg - Glattpark - Bh. Glattbrugg - Flughafen Kloten (Zürich Airport)
13	Frankental - Escher-Wyss-Platz - Limmatstrasse - Hauptbahnhof (Zürich Station) - Bahnhofstrasse - Paradeplatz - Saalsporthalle - Laubegg - Albisgütli
14	Triemli - Staufferacher - Hauptbahnhof (Zürich Station) - Schaffhauserplatz - Milchbuck - Messe - Bahnhof Oerlikon Ost - Seebach
15	Bucheggplatz - Schaffhauserplatz - Central - Limmat Quai - Bellevue - Bahnhof Stadelhofen
17	Werdhölzli - Hardturm - Hardturmstrasse - Escher-Wyss-Platz - Limmatstrasse - Hauptbahnhof (Zürich Station) - Bahnhofstrasse - Paradeplatz - Saalsporthalle - Laubegg - Albisgütli

SUBURBAN TRAM ROUTES

Operator: Sihltal-Zürich-Uetliberg-Bahn (SZU)

S4	Hauptbahnhof (Zürich Station) - Sihlwald
S10	Hauptbahnhof (Zürich Station) - Uetliberg

Operator: Aargau Verkehr AG

S17	Dietikon - Bremgarten - Wohlen

Operator: Forchbahn (FB)

S18	Bahnhof Stadelhofen - Kreuzplatz - Hirslanden - Rehalp - Forch - Esslingen

Operator: Limmattalbahn

S20	Bh. Zürich Altstetten -Farbhof - Schlieren - Urdorf Nord - Dietikon - Kreuzacker - Killwangen-Spreitenbach

FUNICULARS AND RACK RAILWAYS

Operator: Verkehrsbetriebe Zürich (ZVV)

23 - Seilbahn Rigiblick	Oberstrass - Rigiblick
24 - Polybahn	Central - Polyterrasse

Operator: Dolderbahn-Betriebs-AG

25 - Dolderbahn

Römerhof - Dolder Bergstation

CHARACTERISTICS OF THE SYSTEM

HISTORY

Urban tramways: (horse-drawn): 1882 - 1896; (electric): 1894 - today.
Forchbahn: (electric): 27 Nov. 1912 - today.
Limmattalbahn (electric): 11 Dec. 2022 - today.
Wohlen - Dietikon line (steam, Wohlen - Bremgarten only) 1 Sept. 1876 - 30 April 1912; (electric): 30 Apr. 1912 - today.
Sihltalbahn: (steam) 1892 - 1924; (electric) 1924 - today.
Uetlibergbahn: (steam) 1875 - 1923; (electric) 1923 - today.
Dolderbahn: (funicular) 1895 - 1973; (rack-railway): 1973 - today.
Polybahn (funicular): (water-driven) 1889-1897; (electric) 1897 - today.
Seilbahn Rigiblick (funicular): 1901 - today.

GAUGE

Urban tramways: 1000 mm.
Forchbahn / Limmatbahn / Wohlen - Dietikon line: 1000 mm.
Sihltalbahn / Uetlibergbahn: 1435 mm.
Dolderbahn: 1000 mm.
Polybahn: 1000 mm.
Seilbahn Rigiblick: 1000 mm.

TRAM PRESERVATION

The Zürich Tram Museum has a large number of preserved trams. One of these historic trams is run through city streets, April to October, as Museum Tram Line 21.

SOURCES

PRINT

Brosteaux, M., Ulmann M. & Wiseman, R. "The trams return to Schwamendingen" Modern Tramway & Light Rail Transit., July 1986 (49:583), p.227-241.
Buckley, R.J. Tramways and Light Railways of Switzerland and Austria. Milton Keynes (England): Light Rail Transit Association, 1st ed., 1984.
Buckley, R.J. Tramways and Light Railways of Switzerland and Austria. Milton Keynes (England): Light Rail Transit Association, 2nd ed., 2000.
Eisenbahnatlas Schweiz / Railatlas Suisse. Köln (Germany): Schweers + Wall, 2004.
Moglestue, A. "The Cobra rules, all above ground" Tramways & Urban Transit, May 2005 (68:809), p.180-184.
Moglestue, A. "Glattalbahn: Trams for a new city" Tramways & Urban Transit, Apr. 2009 (72:856), p.142-143.
Moglestue, A. "Tram Zürich West unlocks regeneration" Tramways & Urban Transit, Aug. 2012 (75:896), p.300-301.
Moglestue, A. "Zürich: Top city - thanks to light rail" Tramways & Urban Transit, April 2005 (68:808), p.130-134.
Pulling, N. "Systems Fact File No.133: Zürich, Switzerland" Tramways & Urban Transit, Nov. 2018 (81:971), p.422-428.
"Systems Fact File No.17: Zürich, Switzerland" Tramways & Urban Transit, Feb. 2009 (72:854), p.59-61.
Taplin, M. "The Zürich way". In: Light Rail Review 3. London: Light Rail Transit Association, 2001 [p.5-11].
Thompson, A. "Linking up in Zurich", Tramways & Urban Transit, Aug 2024 (87:1040), p.295-298.
Thompson, A. "Riding the Limmatbahn" Tramways & Urban Transit, March 2022 (86:1023), p.94-97.
Trüb, W. Die Zürcher Strassenbahnen. Zürich: Eisenbahn-Amateur (Separatdruck), 1961/1978.
Wansbeek, C.J. "Zürich plays the tram card again" Light Rail & Modern Tramway, July 1997 (60:715), p.253-255.
Wyse, W.J. "Tram subways for Zurich" The Modern Tramway, Apr. 1961 (24:280), p.92-96.
