INSET: CENTRAL BARCELONA

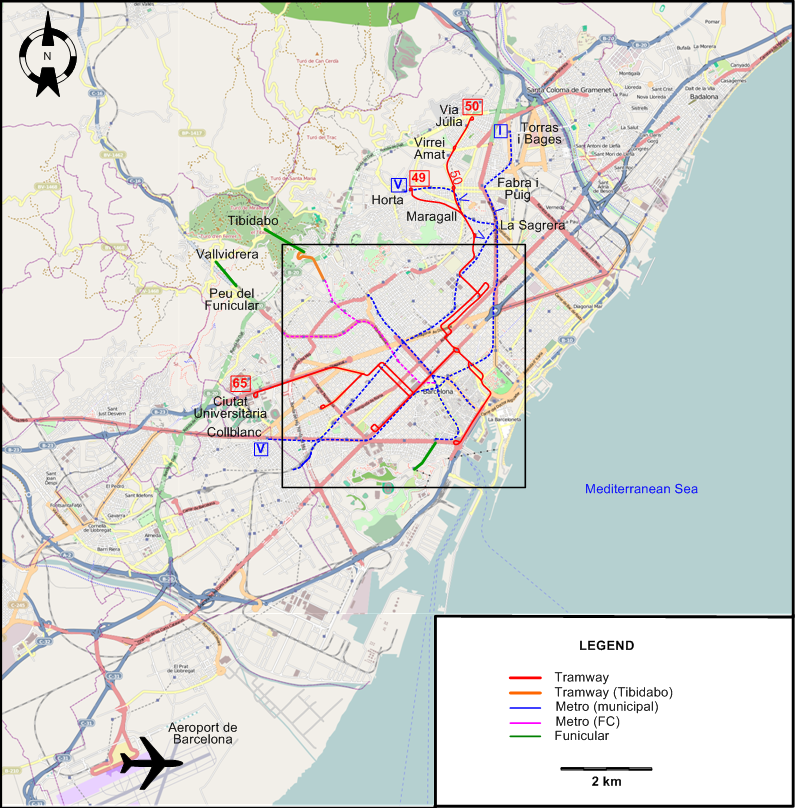

I created the above maps by overlaying OpenStreetMap (OSM) maps with my own data. Copyright on the OSM maps is © OpenStreetMap contributors, licensed under a CC-BY-SA (Creative Commons Attribution-ShareAlike 2.0 licence).
Please note that the OSM maps used as templates for these maps correspond to the situation at the time the maps were downloaded and may show features that did not exist at the time the GS Tram Site is supposed to show. In particular, they may show bridges and highways that were built later.
Note: Names of streets, squares etc. used below and on the maps are as they are today, in Catalan (and not in Spanish, as they were at the time of this map.
DISCONTINUATION DATES OF TRAM TRACKS BETWEEN 21 JULY 1970 AND 17 MARCH 1971 (affected route numbers in parantheses)
- 1970 July 21: C. de Berlin; C. Mallorca & C. València (NE of C. del Dos de Maig) and C. de Rogent (54)
- 1970 Aug. 4: Ciutat Universitària – Av. Diagonal – Av. de Sarrià (65)
- 1970 Aug. 17: C. de Vilamarí – Gran Via – Pl. de la Universitat (50)
ROUTES
Operator: Transportes de Barcelona (ancestor of Transports Metropolitans de Barcelona (TMB))
URBAN TRAM ROUTES
| 49 | Drassanes – Est. de França – Arc de Triomf – Tetuan – C. Mallorca [back : C. València] – Maragall – Horta |
| 50 | C. de Vilamarí – Gran Via – Tetuan – C. Mallorca [back : C. València] – Maragall – Virrei Amat – Via Júlia |
| 54 | Pl. del Centre – C. de Berlin – C. de Muntaner [back: C. d'Aribau] – Universitat - Gran Via – Pl. Tetuan – C. Mallorca [back: C. València] – C. de Rogent |
| 65 | Ciutat Universitària – Av. Diagonal – Av. de Sarrià – C. de Muntaner [back: C. d'Aribau] – Universitat – Gran Via – Tetuan – Arc de Triomf – Est. de França – Drassanes |
TOURIST TRAMWAY ("BLUE TRAMWAY")
Operator: Sociedad Anónima El Tibidabo
| Pl. Kennedy - Av. de Tibidabo - Funicular del Tibidabo |
METRO
Operator: FC Metropolitano de Barcelona
| I | Sta. Eulàlia - Pl. de Sants - Pl. de Espanya - Pl. de Catalunya - Arc de Triomf - Glòries - Clot - La Sagrera - Fabra i Puig - Torras i Bages |
| III | Lesseps - Diagonal - Pl. de Catalunya - [Drassanes - Paraŀlel] / Correos |
| V | Collblanc - Pl. de Sants - Sants Estació - Provença - Diagonal - Sagrada Família - La Sagrera - Maragall - Horta |
Operator: Ferrocarriles de Cataluña
| Pl. de Catalunya - Provença - Sant Gervasi - La Bonanova - Sarrià | |
| Pl. de Catalunya - Provença - Pàdua - Av. de Tibidabo |
FUNICULARS
| Paraŀlel - Montjuïc | |
| Pl. Dr. Andreu - Tibidabo | |
| Peu del Funicular - Vallvidrera |
CHARACTERISTICS OF THE SYSTEM
NETWORK LENGTH
- Tramways: ? km.
- Metro (Municipal): ? km.
- Metro (Ferrocarriles de Cataluña): 6 km.
- Blue tramway: 1.1 km.
- Montjuïc funicular: 758 m.
- Tibidabo funicular: 1130 m.
- Vallvidrera funicular: 736 m.
HISTORY
- Urban tramways (First cycle): (horse-drawn) 27 June 1872 - 1905?; (electric): 26 Jan. 1899 - 18 Mar. 1971.
- Urban tramways (Second cycle): (electric) 3 Apr. 2004 - today.
- Blue Tramway: (electric) 29 Oct. 1901 - today.
- Urban metro lines: 30 Dec. 1924 - today.
- FGC metro lines: (steam) 1863; (electric) 1906 - today.
- Montjuïc funicular: 24 Oct. 1928 - today.
- Tibidabo funicular: 29 Oct. 1901 - today.
- Vallvidrera funicular: 1906 - today.
GAUGE
- Urban tramways (First cycle): 1435/1000 mm.
- Urban tramways (Second cycle): 1435 mm.
- Blue Tramway: 1435 mm.
- Metro (L1): 1674 mm.
- Other metro lines: 1435 mm.
- Montjuïc funicular: 1200 mm.
- Tibidabo & Vallvidrera funiculars: 1000 mm.
SOURCES
- Cabrera, E. "Unifying Barcelona's tramways", Tramways & Urban Transit, July 2021 (84: 1003), p.268-271.
- Gonzàlez Masip, A. Els tramvies de Barcelona – Història i explotació [Barcelona tramways – History and operations] (2 vols.) Barcelona: Rafael Dalmau, 1998.
- "Systems Factfile: No.16 - Barcelona, Spain", Tramways & Urban Transit, Jan. 2009 (72: 853), p.21-23.
- Young, J. Barcelona transport maps (sheet maps). Exeter: Quail Map Co., 1985.
- Wansbeek, C.J. "Barcelona: Teething troubles ironed out", Tramways & Urban Transit, July 2004 (67: 799), p.253-257.
- Wansbeek, C.J. "Barcelona: Brand new impetus for the metro", Tramways & Urban Transit, Sept. 2004 (67: 801), p.331-333.
- Zurita, F. "The tramways of Barcelona", Modern Tramway, Apr. 1963 (26: 304), p.122-131.
- Zurita, F. "The urban railways of Barcelona", Modern Tramway, Aug. 1963 (26: 308), p.269-290.
WIKIS
- Ferrocarrils de la Generalitat de Catalunya / Ferrocarriles de la Generalidad de Cataluña (FGC)
- Funicular de Montjuïc
- Funicular de Vallvidrera
- Funicular del Tibidabo
- Metro de Barcelona
- Tram de Barcelona
- Tramvia Blau
- Transports Metropolitans de Barcelona / Transportes Metropolitanos de Barcelona (TMB)
WEB SITES
- Autobuses BCN (Despite its title, this site has a thorough coverage of the history of rail-based transportation in Barcelona as well).
- Autoritat del Transport Metropolità (ATM)
- Barcelona (on UrbanRail.Net)
- Ferrocarrils de la Generalitat de Catalunya / Ferrocarriles de la Generalidad de Cataluña (FGC)
- Tram (Official web site of the TMB devoted to trams)
- Transports Metropolitans de Barcelona / Transportes Metropolitanos de Barcelona (TMB)
- wefer.com (Site devoted to the history of rail-based transportation in Catalonia)
