BARCELONA

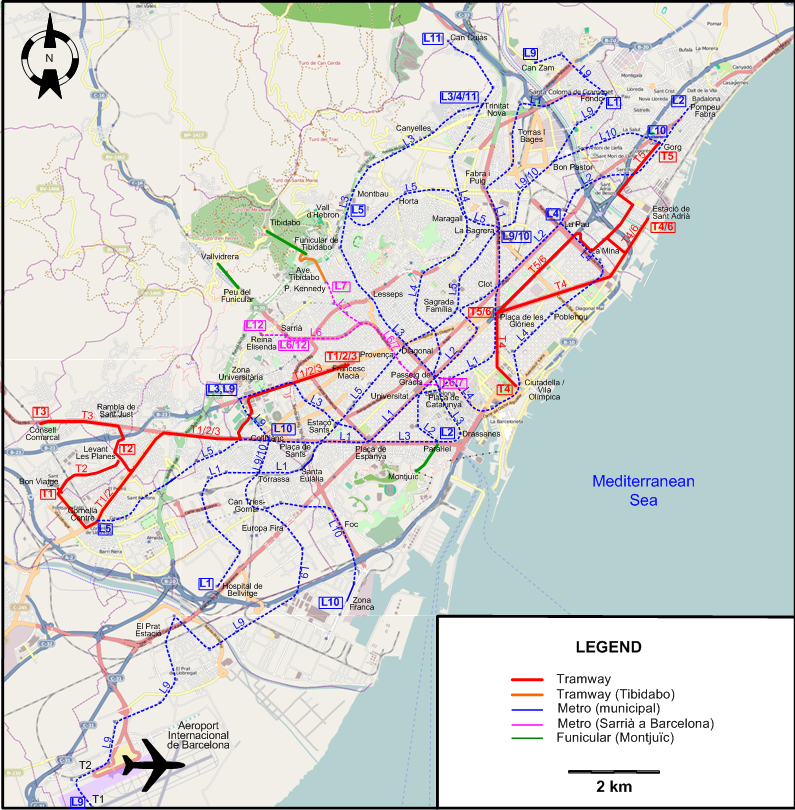

I created the above map by overlaying an OpenStreetMap (OSM) map with my own data. Copyright on the OSM map is © OpenStreetMap contributors, licensed under a CC-BY-SA (Creative Commons Attribution-ShareAlike 2.0 licence).

Please note that the OSM map used as a template for this map corresponds to the situation at the time the map was downloaded and may show features that did not exist at the time the GS Tram Site is supposed to show. In particular, it may show bridges and highways that were built later.

ROUTES

Operator: Transports Metropolitans de Barcelona (TMB)

URBAN TRAM ROUTES, IN TWO SEPARATE NETWORKS:

TRAMBAIX

TRAMBESÒS

TOURIST TRAMWAY ("BLUE TRAMWAY")

METRO

Operator: Transports Metropolitans de Barcelona (TMB)

Operator: Ferrocarriles de la Generalitat de Cataluña (FGC)

NB: The line numbered L8 (Pl. Espanya - Molí Nou-Ciutat Cooperativa), named as such since 2003, is in reality part of a suburban mainline railway line, and is not considered here as part of the Barcelona metro system.

FUNICULARS

Operator: Transports Metropolitans de Barcelona (TMB)

Operator: Ferrocarriles de la Generalitat de Cataluña (FGC)

CHARACTERISTICS OF THE SYSTEM

NETWORK LENGTH

• Tramways: 30 km.
• Metro (Municipal): 107 km.
• Metro (Ferrocarriles de Cataluña): 7 km.
• Blue tramway: 1.3 km.
• Montjuïc funicular: 758 m.
• Tibidabo funicular: 1,152 m.
• Vallvidrera funicular: 736 m.

HISTORY

• Urban tramways (First cycle): (horse-drawn) 27 June 1872 - 1905?; (electric): 26 Jan. 1899 - 18 Mar. 1971.
• Urban tramways (Second cycle): (electric) 3 Apr. 2004 - today.
• Blue Tramway: (electric) 29 Oct. 1901 - today.
• Urban metro lines: 30 Dec. 1924 - today.
• FGC metro lines: (steam) 1863; (electric) 1906 - today.
• Montjuïc funicular: 24 Oct. 1928 - today.
• Tibidabo funicular: 29 Oct. 1901 - today.
• Vallvidrera funicular: 1906 - today.

GAUGE

• Urban tramways (First cycle): 1435/1000 mm.
• Urban tramways (Second cycle): 1435 mm.
• Blue Tramway: 1435 mm.
• Metro (L1): 1674 mm.
• Other metro lines: 1435 mm.
• Montjuïc funicular: 1200 mm.
• Tibidabo & Vallvidrera funiculars: 1000 mm.

SOURCES

PRINT

• Cabrera, E. "Unifying Barcelona's tramways", Tramways & Urban Transit, July 2021 (84: 1003), p.268-271.
• Gonzàlez Masip, A. Els tramvies de Barcelona – Història i explotació [Barcelona tramways – History and operations] (2 vols.) Barcelona: Rafael Dalmau, 1998.
• "Systems Factfile: No.16 - Barcelona, Spain", Tramways & Urban Transit, Jan. 2009 (72: 853), p.21-23.
• Young, J. Barcelona transport maps (sheet maps). Exeter: Quail Map Co., 1985.
• Wansbeek, C.J. "Barcelona: Teething troubles ironed out", Tramways & Urban Transit, July 2004 (67: 799), p.253-257.
• Wansbeek, C.J. "Barcelona: Brand new impetus for the metro", Tramways & Urban Transit, Sept. 2004 (67: 801), p.331-333.
• Zurita, F. "The tramways of Barcelona", Modern Tramway, Apr. 1963 (26: 304), p.122-131.
• Zurita, F. "The urban railways of Barcelona", Modern Tramway, Aug. 1963 (26: 308), p.269-290.

WIKIS

• Ferrocarrils de la Generalitat de Catalunya / Ferrocarriles de la Generalidad de Cataluña (FGC)
• Funicular de Montjuïc
• Funicular de Vallvidrera
• Funicular del Tibidabo
• Metro de Barcelona
• Tram de Barcelona
• Tramvia Blau
• Transports Metropolitans de Barcelona / Transportes Metropolitanos de Barcelona (TMB)

WEB SITES

• Autobuses BCN (Despite its title, this site has a thorough coverage of the history of rail-based transportation in Barcelona as well).
• Autoritat del Transport Metropolità (ATM)
• Barcelona (on UrbanRail.Net)
• Ferrocarrils de la Generalitat de Catalunya / Ferrocarriles de la Generalidad de Cataluña (FGC)
• Tram (Official web site of the TMB devoted to trams)
• Transports Metropolitans de Barcelona / Transportes Metropolitanos de Barcelona (TMB)
• wefer.com (Site devoted to the history of rail-based transportation in Catalonia)
