Los Angeles 2016

The Los Angeles urban rail system after the extension of the Gold Line to APU / Citrus College on 5 March 2016 and of the Expo Line to Santa Monica on 20 May 2016.

VIDEOS

Above: YouTube^CA video – Los Angeles Metro Gold, Blue & Expo Line – Length: 7:38 mins.

Above: YouTube^CA video – The Subway in Los Angeles, California 2018 – Length: 9:16 mins.

Above: YouTube^CA video – LA Metro – E Line (Expo) (Pico – Santa Monica) – Length: 43:59 mins.

Above: YouTube^CA video – Angels Flight Railway in Downtown Los Angeles (4th Street) – Length: 7:32 mins.

PHOTOS

MAPS

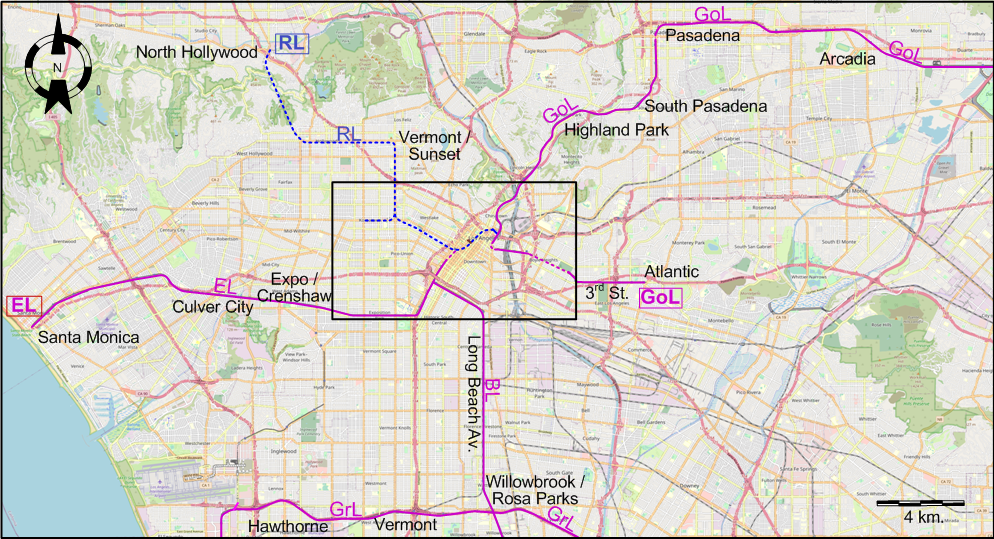

Los Angeles lrt map – 2016

FIRST INSET: DOWNTOWN LOS ANGELES

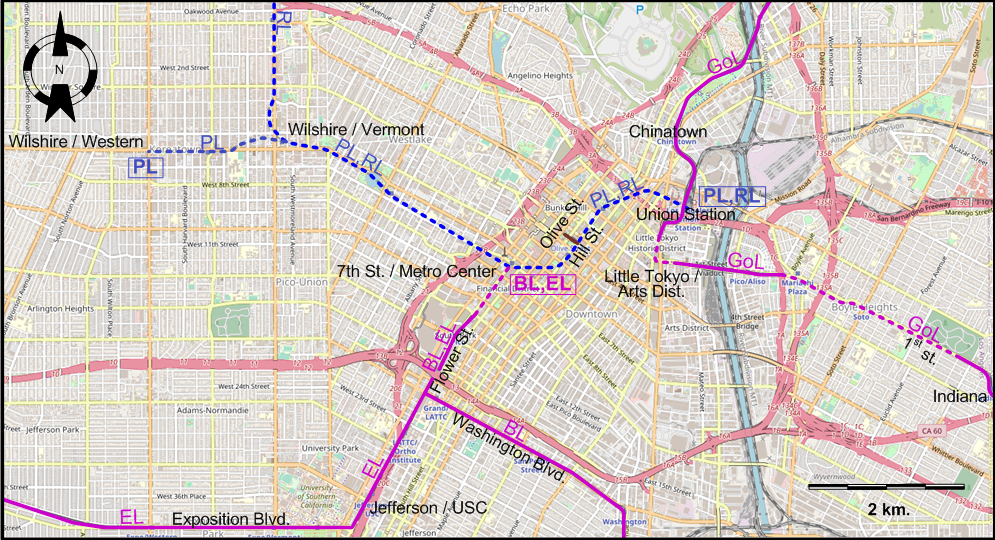

Los Angeles downtown lrt map – 2016

SECOND INSET: THE LOS ANGELES REGION

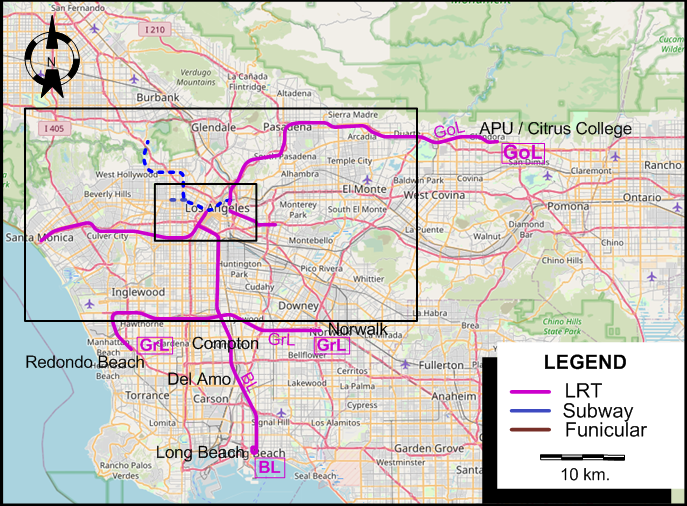

Los Angeles interurban lrtmap – 2016

I created the above maps by overlaying OpenStreetMap (OSM) maps with my own data. Copyright on the OSM maps is © OpenStreetMap contributors, licensed under a CC-BY-SA (Creative Commons Attribution-ShareAlike 2.0 licence).

Please note that the OSM maps used as templates for these maps correspond to the situation at the time the maps were downloaded and may show features that did not exist at the time the GS Tram Site is supposed to show. In particular, they may show bridges and highways that were built later.

ROUTES

Operator: Los Angeles County Metropolitan Transportation Authority (Metro)

Note: The two or three-character codes used to identify routes below and in the maps are for convenience only, and were not used by the operating company.

LIGHT RAIL ROUTES

BL	Blue Line	7th St. / Metro Center – Flower St. – Washington Blvd. – Long Beach Av. – Willow Brook / Rosa Parks – Compton – Del Amo – Long Beach
EL	Expo Line	7th St. / Metro Center – Flower St. – Exposition Blvd. - Expo / Crenshaw - Culver City - Santa Monica
GoL	Gold Line	Atlantic – 3rd St. – 1st St. – Union Station – Chinatown – Highland Park – South Pasadena – Pasadena (Sierra Madre Villa) - Arcadia - APU / Citrus College
GrL	Green Line	Norwalk – Willowbrook / Rosa Parks – Vermont – Hawthorne – Redondo Beach

SUBWAY ROUTES

PL	Purple Line	Union Station - Hill St. - - 7th St. / Metro Center - Wilshire / Vermont - Wilshire / Western
RL	Red Line	Union Station - Hill St. - 7th St. / Metro Center - Wilshire / Vermont - Vermont / Sunset - North Hollywood

FUNICULAR ROUTE

Operator: Angels Flight® Railway Foundation

Angels Flight

Hill St. – Olive St.

CHARACTERISTICS OF THE SYSTEM

NETWORK LENGTH

LRT lines: 133.1 km.
- Blue Line: 35.4 km.
- Expo Line: 24.5 km.
- Gold Line: 50.0 km.
- Green Line: 32.2 km.
Subway lines: 25.4 km.
- Purple line (alone): 1.8 km.
- Red line (alone): 17.4 km.
- Purple / Red common line: 6.2 km.
Funicular: 91 m.

HISTORY

Horse-drawn streetcars: 1874 - 1896
Cablecars: 1888 - 1896
Electric streetcars (Los Angeles): 1 July 1891 - 1963
Electric streetcars (San Pedro): Jan. 1903 - 23 Jan. 1938
Interurban railways: 1887 - 9 Apr. 1961
Light rail: 14 July 1990 - today.
Subway: 30 Jan. 1993 - today
Funicular: (1st) 31 Dec. 1901 - 18 May 1969; (2nd) 24 Feb. 1996 - today.

GAUGE

Streetcars (Los Angeles Railway; San Pedro streetcars): 1067 mm.
Interurbans (Pacific Electric): 1435 mm.
Light Rail: 1435 mm.
Subway: 1435 mm.
Funicular: 762 mm.

TRAM PRESERVATION

The Orange Empire Railway Museum in Perris, southeast of Riverside, owns and operates a large collection of vintage Pacific Electric and Los Angeles Railway streetcars over 0.8km dual-gauge and 2.4km standard gauge track.

SOURCES

PRINT

"Los Angeles and San Francisco", The Modern Tramway, Nov. 1949 (12: 143), p.221-224.
Simons, V. "LA Light Rail on the move", Tramways & Urban Transit, May 2017 (80: 953), p.172-175.
Simons, V. "Los Angeles: Gone but not forgotten", Tramways & Urban Transit, Feb. 2010 (73: 866), p.76-77.
Simons, V. "Los Angeles: Light rail to the Beach - and beyond", Tramways & Urban Transit, Aug. 2016 (79: 944), p.295-300.
Simons, V. "Los Angeles - The transformation continues", Tramways & Urban Transit, Dec. 2023 (86: 1032), p.468-470.
Simons, V. "Los Angeles transformation", Tramways & Urban Transit, Dec. 2009 (72: 864), p.460-463.
Simons, V. "Update from Los Angeles", Tramways & Urban Transit, May 2013 (76: 905), p.175.
Skelsey, G. "Hill Street Blues" [The Pacific Electric Railway (PE)], Modern Tramway & Light Rail Transit, Aug. 1988 (51: 608), p.263-269.
Smith, G.E. "Los Angeles - The S route", The Modern Tramway, Oct. 1961 (24: 286), p.295-298.
Veysey, L.R. A history of the rail passenger service operated by the Pacific Electric Railway Company since 1911 and by its successors since 1953 Los Angeles: Interurbans, 1958.
Walker, J. Images of Rail: Pacific Electric red cars. Charleston, SC: Arcadia Publishing, 2006.
Wansbeek, C.J. "Los Angeles - Megacity needs more light rail", Tramways & Urban Transit, May 2007 (70: 833), p.172-176.
Wansbeek, C.J. "Los Angeles - New light rail line brings gold to Pasadena", Tramways & Urban Transit, June 2007 (70: 834), p.217-219.
Wansbeek, C.J. "Los Angeles - Metrolink: Successful urban rail", Tramways & Urban Transit, July 2007 (70: 835), p.258-261.
